FWA8708-C

Brand: IBASE
Categories:

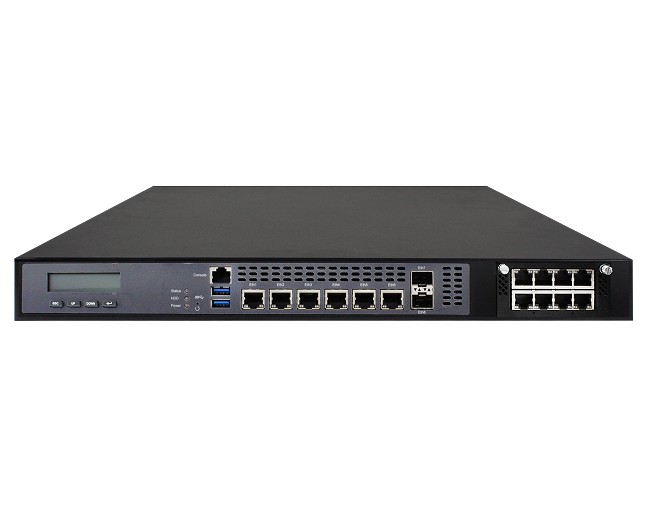

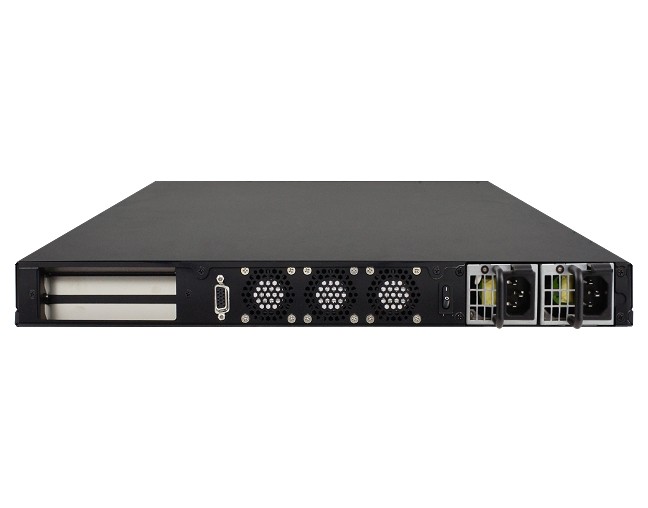

FWA8708 is a 1U Rackmount network appliance powered by 8th Generation Intel® Xeon®/Core™ processors that provides high scalability and performance for firewall, VPN, UTM, load balancing and network security applications in SMB and large enterprise environments. FWA8708 comes in two versions: FWA8708-C powered by Intel® C246 and FWA8708-H featuring Intel® H310 chipset.

FWA8708-C features four DDR4-2666 modules supporting up to 64GB system memory and 6x Intel® i210 and 2x i210S Ethernet controller with 8GbE Port and Optional IBN card (IBASE dedicated network interface card) for up to 8GbE memory.

FWA8708 offers rich I/O connectivity and Expansion. It provides two PCIe and Mini-PCIe slots for high-density PCIe loads and one M.2 expansion slot for interfacing with SATA 3.0 and PCIe x4 bus for high data throughput. Most network applications


Features


Product Code FWA8708-C
Processor [CPU] Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron®
Processor [CPU] Family Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron®
RAM [System Memory] [Max 32 GB]
SSD/HDD/mSATA/M.2 M.2 M Key x 1 | 2.5" | 3.5" SATA x 2
LAN/Ethernet GbE x 16
USB 3.0 x 2
Video Output VGA x 1
Expansion Slot PCIe [x1] x 1 | PCIe [x1] x 1
External Dimensions (mm) 439 x 422 x 44
Body Material Aluminum
Certificates CE | FCC
Supported Operating Systems Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license.
