EPIC-TGH7-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

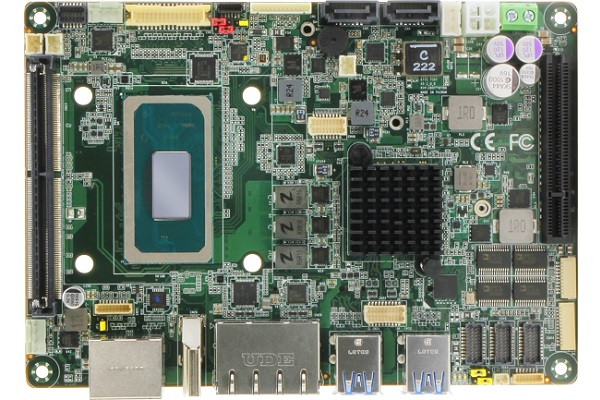

EPIC-TGH7-A10-0003 is a powerful motherboard with 11th Generation Intel® Xeon®, Core™ i9, i7, i5, i3 and Pentium® processor options.
It was developed for industrial and military defense applications that require intensive computing.

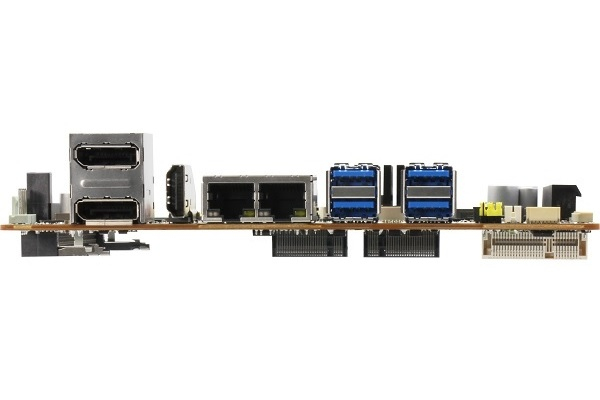

It supports 2.5 GbE x 1 and GbE x 1 LAN connectivity, 4 x USB 3.0, 4 x USB 2.0, RS-232 and RS-232/422/485 serial ports.
It is suitable for multi-screen use with HDMI, VGA, DP and LVDS video outputs.
It offers wide compatibility with Windows and Linux operating systems and can operate in the temperature range of -20°C ~ 60°C.
Features
| Product Code | EPIC-TGH7-A10-0003 |
| Form Factor | 4" EPIC |
| Card Size (mm) | 115 x 165 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 2 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.0 | x 4 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | DIO 16CH |
| Video Output | HDMI 2.0 x 1 + VGA x 1 + DP x 2LVDS x 1 |
| LVDS | 24/48 bit 2CH x 1 |
| Audio Output | Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | PC/104 x 1 | SIM x 1 | MicroSD x 1 |
| SMBUS | x 1 |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
