EMB-Q170B-A11-210
Brand: AAEON [An ASUS Co.]
Categories:

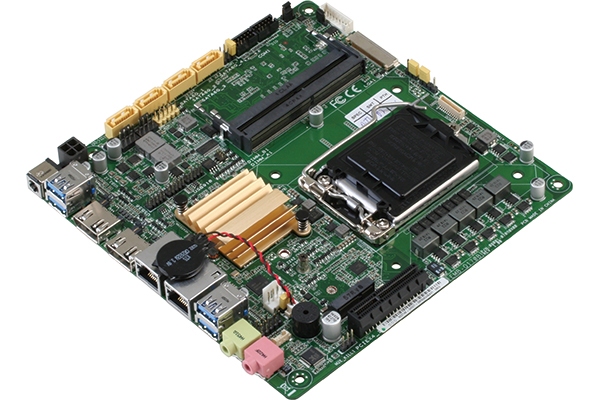

EMB-Q170B-A11-210 is a Mini-ITX form factor industrial motherboard supporting 6th generation Intel® Core™ processors.
It offers high capacity with M.2 PCIe expansion slot and SATA3 storage support.

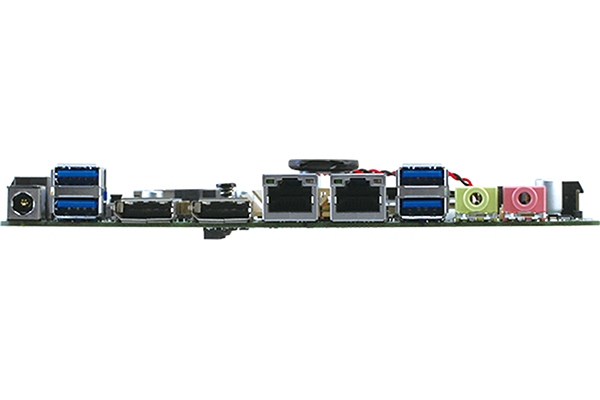

It provides extensive connectivity support with 2 x GbE LAN, 4 x USB 3.2, 4 x SATA3, HDMI + eDP + LVDS video output.
Fanless thermal design, 0°C ~ 60°C operating temperature and durable structure make it suitable for harsh industrial conditions.
It is compatible with Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | EMB-Q170B-A11-210 |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 4 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 + eDP x 1 + LVDS x 1 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | PCIe [x4] x 1 | M.2 M Key x 1 | M.2 E Key x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
