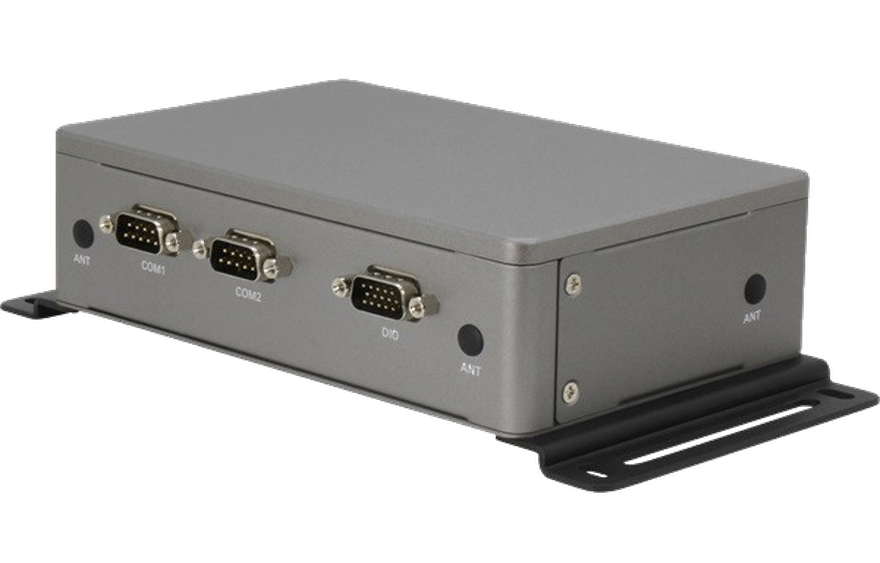

BOXER-6406U-ADN-A1-1010
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway
The BOXER-6406U-ADN is a fanless, compact embedded computer designed for low-power, efficient industrial use, providing robust performance even in challenging environments.
Equipped with Intel Atom® x7211E and Intel® Processor N-series processors, this embedded computer ensures reliable and powerful computing performance suitable for various industrial applications.
Featuring 2.5GbE x 2, USB 3.2 Gen 2, and M.2 slots for both 2280 M-Key and 2230 E-Key, the BOXER-6406U-ADN offers flexible expansion and high-speed communication interfaces.
Designed for tough industrial conditions, this embedded computer operates reliably across a wide temperature range of -20°C to 60°C, making it suitable for demanding environments.
With support for DDR5 4800MHz via SODIMM and onboard TPM 2.0, the BOXER-6406U-ADN ensures fast, reliable memory performance and enhanced security for industrial applications.
Features
| Product Code | BOXER-6406U-ADN-A1-1010 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 164mm x 104.5mm x 47mm |
| Processor [CPU] | Intel® N200 4 Core 3.20 / 3.70 GHz | BM : 5120 |
| Processor [CPU] Family | Intel® Processor N® |
| RAM [System Memory] | DDR5 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | M.2 2280 M-Key x 1 (PCIe Gen 3 x 2) 2.5" SATA Drivex 1 |
| LAN/Ethernet | Intel® I226-LM x 2 |
| USB 3.2 | 2 x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | DB-9 x 3 for RS-232/422/485 |
| Video Output | HDMI x 2 |
| Expansion Slot | M.2 2280 M-Key x 1 (PCIe Gen 3 x 2)M.2 2230 E-Key x 1Full-Size Mini Card x 1 (PCIe + USB)SIM Slot x 1 |
| SMBUS | x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Opsiyonel |
| Supply voltage | DC 12V |
| Operating temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 164mm x 104.5mm x 47mm |
| Weight (kg) | 0.93Kg |
| Certificates | CE |
| Supported Operating Systems | Windows® 10 IoT Enterprise | Windows® 11 Pro | Linux Ubuntu 22.04 |
