ASB200-909-4COM
Brand: IBASE
Categories:

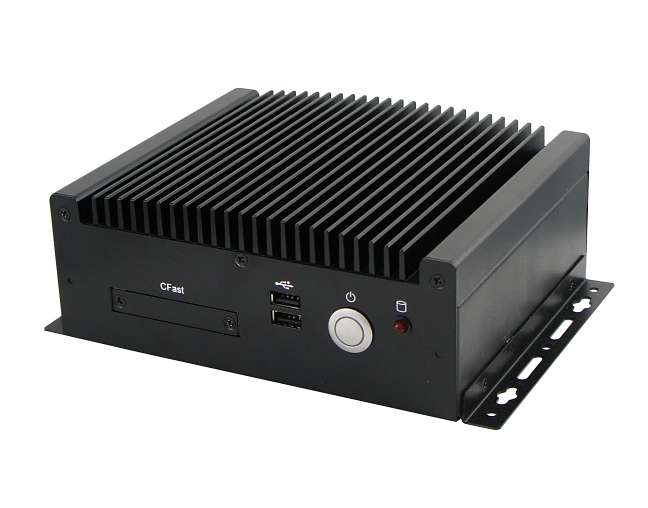

ASB200-909 is a compact fanless system based on IBASE IB909 3.5-inch SBC, powered by 5th Generation Intel® Core™ i75650U or ir-5350U processor and 4GB DDR3L RAM (memory).
Designed for automotive and factory automation applications, ASB200-909 comes with low power consumption and includes optional 60W power adapter, VESA mounting bracket and 12V~24V DC wide range power input terminal block on the headset.
Slim ASB200-909 comes with standard 320GB SATA HDD and its working temperature is 0°C ~ 45°C; But when using SSD (solid state drive), the range extends to -10°C ~ 60°C. The system controls the energy consumption such as power on/off timing and restart.
Features
| Product Code | ASB200-909-4COM |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i5-5350U 2 Core 1.80 GHz | BM : 2670 |
| Processor [CPU] Family | Intel® Core™ i5 5. Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA320 GB |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| UART | (Tx /Rx) x 2 |
| RS 232 Serial Port | x 2 |
| Video Output | DVI-I x 1 |
| Mounting Type | stand |
| Supply Voltage | DC 12-24 V |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 180 x 150 x 66 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
