AQ7-ADN-A10-0005
Brand: AAEON [An ASUS Co.]
Categories:

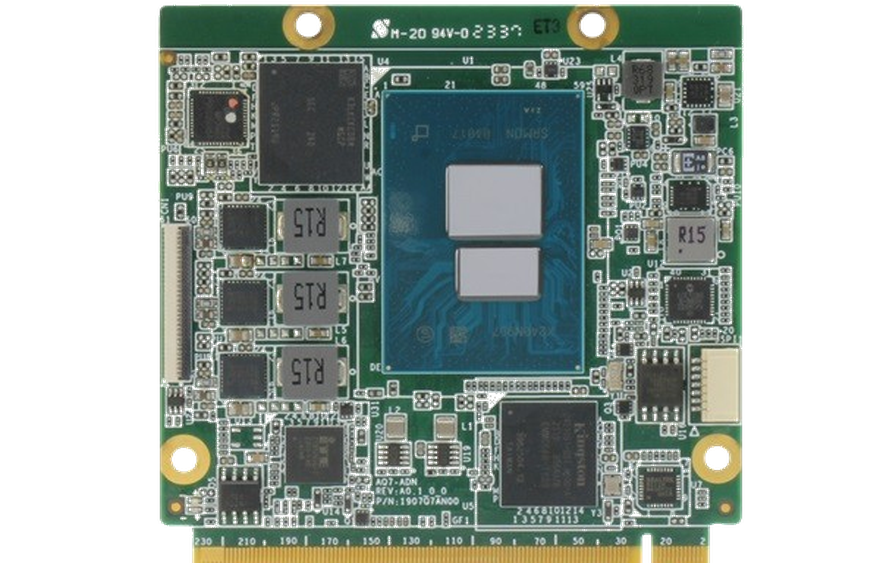

AAEON's AQ7-ADN-A10-0005 is a compact and high-performance Qseven CPU module with an Intel® Atom® x7425E quad-core processor. With a maximum TDP of 15W, it offers an ideal solution for industrial and embedded applications, while prioritizing energy efficiency.
This module features 8GB LPDDR5 onboard memory and 64GB eMMC storage. Realtek RTL8111H-CG provides rich I/O options with 1GbE Ethernet connectivity and six USB 2.0 and two USB 3.2 ports. It also provides the ability to expand storage capacity with a SATA 6Gb/s connector.
The AQ7-ADN-A10-0005 offers versatile integration options with four PCIe [x1] lane expansion options. With its compact form factor of 70 mm x 70 mm and DC 12V power input, it is the perfect solution for space-constrained environments.
It provides flexibility in visual applications by offering Dual Display support with a DP connection and an eDP or LVDS connection. It also offers advanced security solutions with TPM 2.0 support.
Supporting Windows 10, Windows 11 and Linux Ubuntu 22.04 operating systems, AQ7-ADN-A10-0005 stands out as an innovative and reliable platform for modern industrial projects.
Features
| Product Code | AQ7-ADN-A10-0005 |
| Form Factor | Qseven Module |
| Card Size (mm) | 70 x 70 |
| Processor [CPU] | Intel® Atom® x7425E 4 Core 3.40 GHz | BM : 5770 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 8 GB Onboard LPDDR5 |
| SSD/HDD/mSATA/M.2 | 64 GB eMMC |
| LAN/Ethernet | RTL8111H-CG 1 GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 6 |
| Video Output | Dual Display: DP x 1 eDP or LVDS x 1 (Change by BOM) |
| LVDS | x 1 |
| Expansion Slot | PCIe [x1]x4 4-lane MIPI-CSI x 1 |
| SMBUS | x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Opsiyonel |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 70 x 70 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
